ACL OR-CONSOLE® Series

OR-CONSOLE® Series
Central Control Platform for Clinical Environments

The OR-CONSOLE® functions as a centralised hub for the display, recording, and distribution of patient-specific medical data. Designed for use in demanding medical environments, it combines advanced functionality with a clean, modern design.

Fields of Application

• Operating Rooms
• Interventional Areas
• Laboratories
• Clean Rooms

Design & Configuration Options

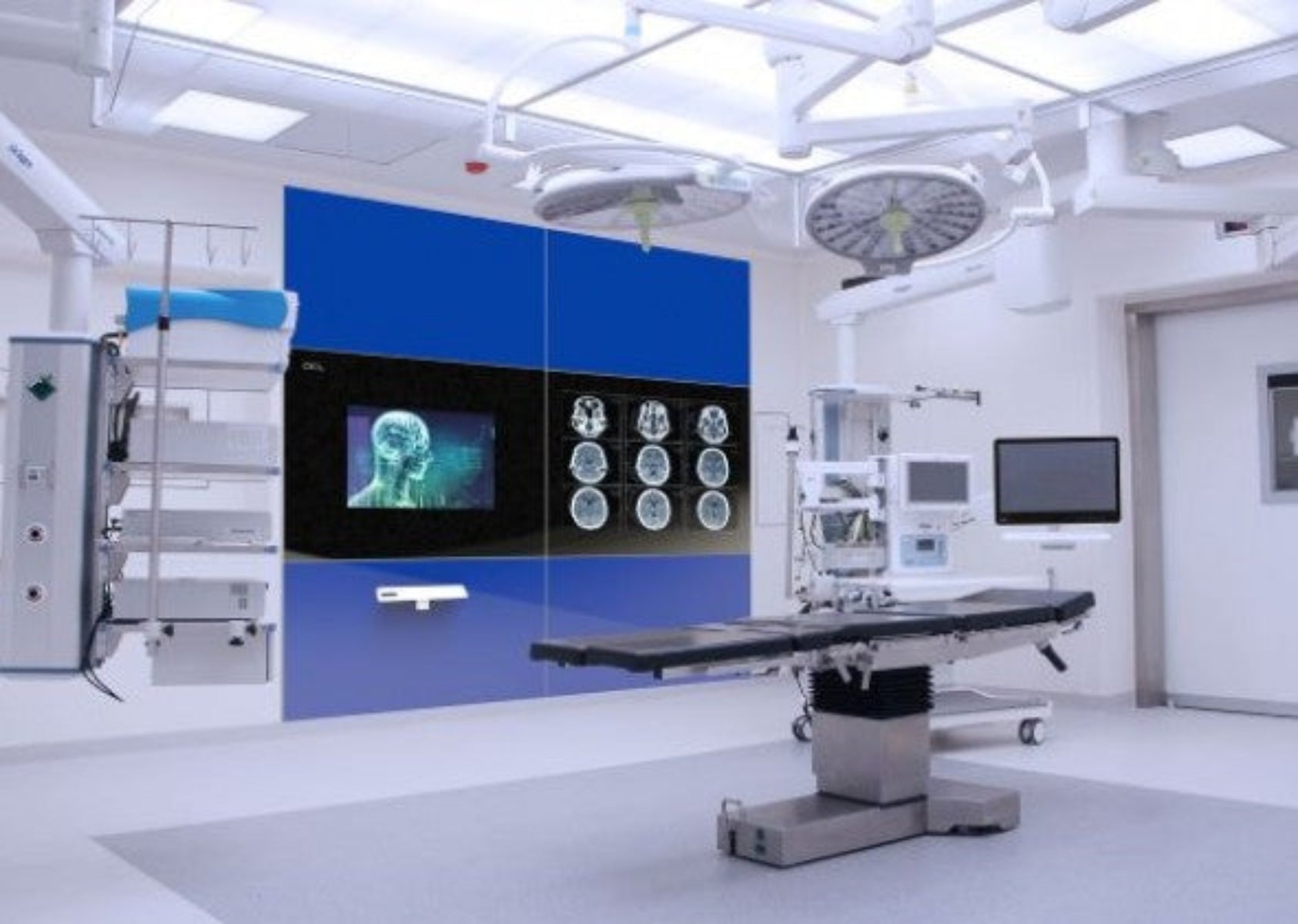

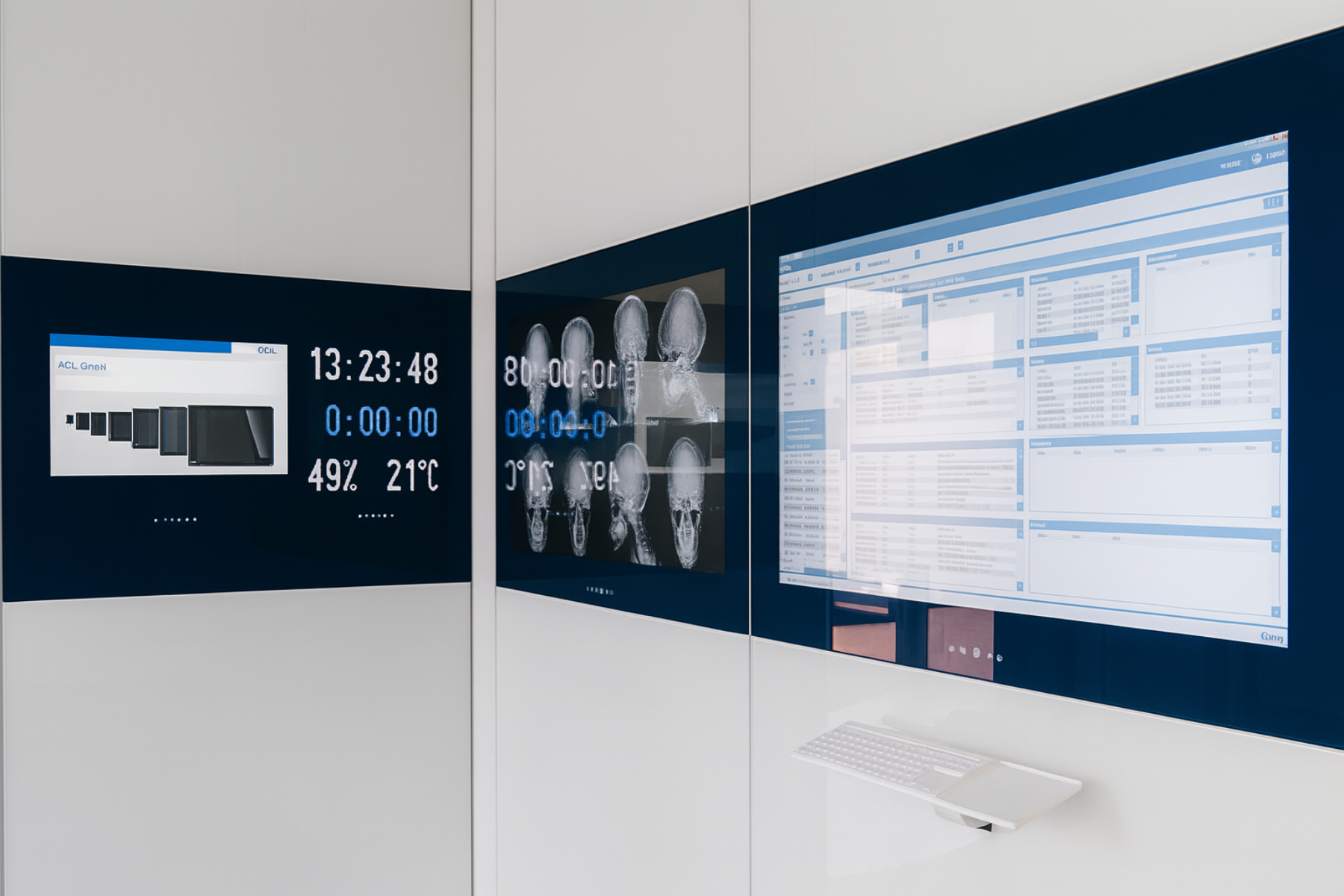

1. Full Glass Front for Modular Wall Systems
The OR-CONSOLE® features a high-quality, innovative design with a non-reflective, full-surface glass front—ideal for modular wall integrations. Optional enhancements include a capacitive multi-touch interface, capacitive keypad, and integrated keyboard for smooth and intuitive operation.

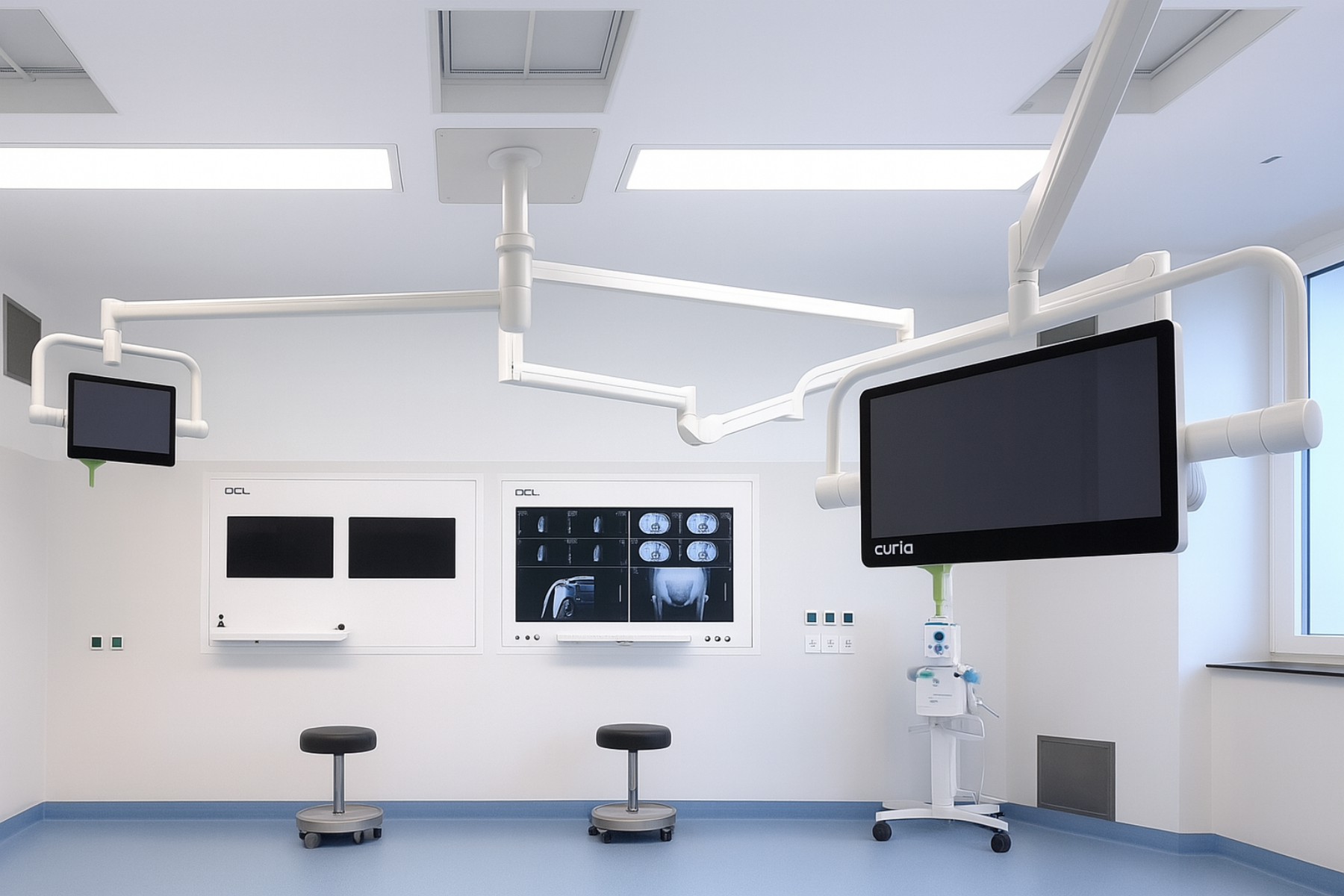

2. Metal Housing (Cost-Effective Variant)
This basic configuration offers a durable metal enclosure that can be custom painted in any RAL colour to match the environment. Available in two mounting styles:

• Frame for flush wall installation
• Body for surface mounting

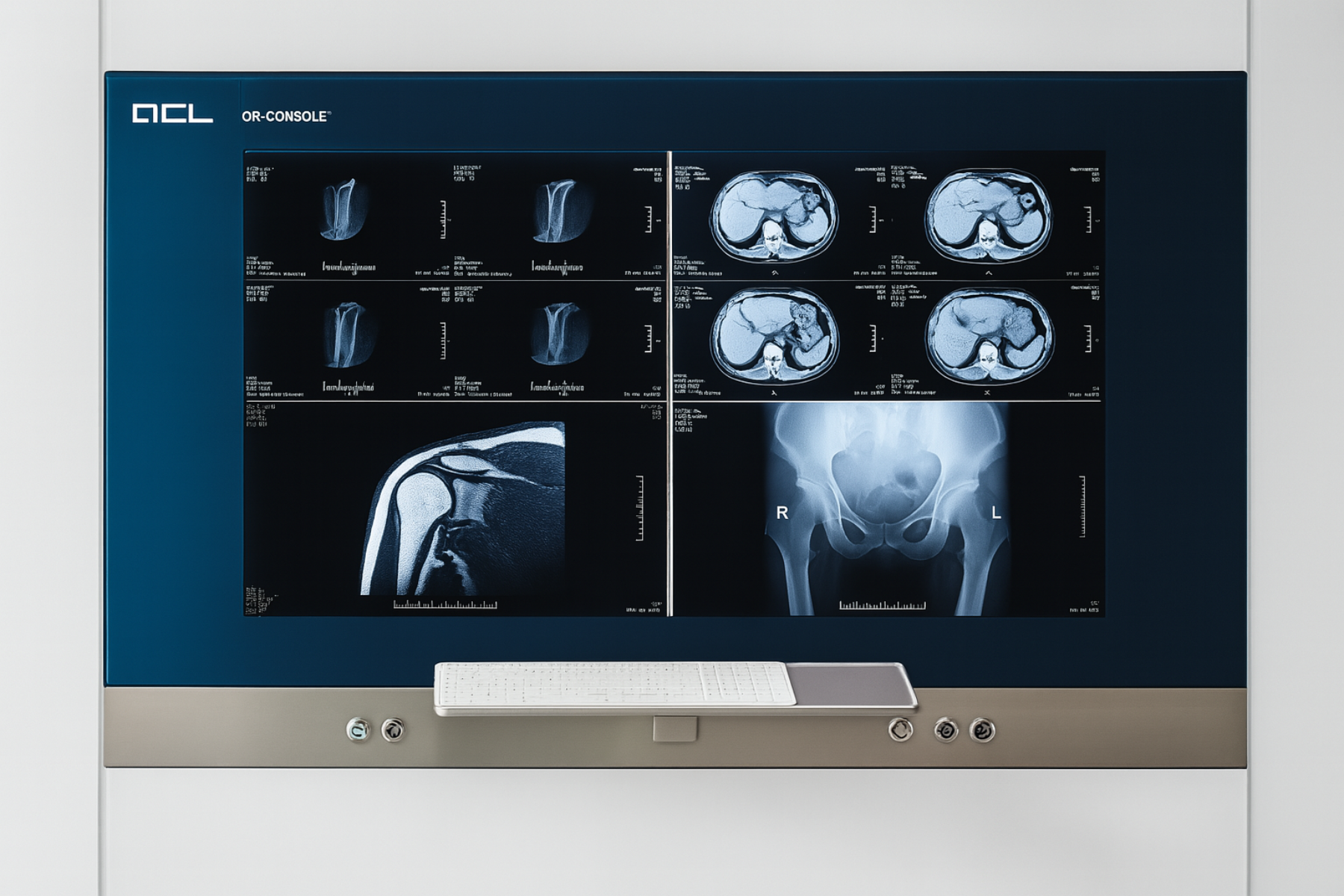

3. Full Glass Front with Integrated Input Panel
This advanced version allows the integration of:

• Built-in keyboard
• Mechanical buttons
• Customisable external interfaces
  These components are seamlessly embedded into a stainless steel panel, with layouts tailored to specific workflow needs.

---

Display Sizes Available

---

Additional Advantages

• Compatible for use with gloves
• Maintains high hygienic standards
• Highly customisable to meet user and facility needs
• Designed for long service life and investment protection (up to 5 years warranty)
• Energy-efficient and environmentally sustainable
• Equipped with a passive cooling system for silent, maintenance-free operation.

OR-CONSOLE® Series

• OR-CONSOLE® 21
• OR-CONSOLE® 24
• OR-CONSOLE® 27 4K
• OR-CONSOLE® 32 4K
• OR-CONSOLE® 43 4K
• OR-CONSOLE® 49 4K
• OR-CONSOLE® 55 4K
• OR-CONSOLE® 65 4K
• OR-CONSOLE® 75 4K11
