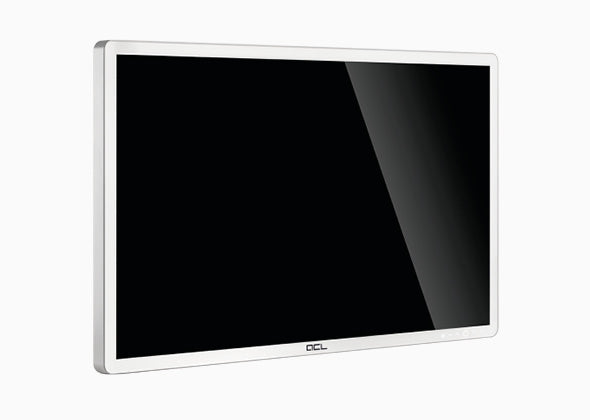

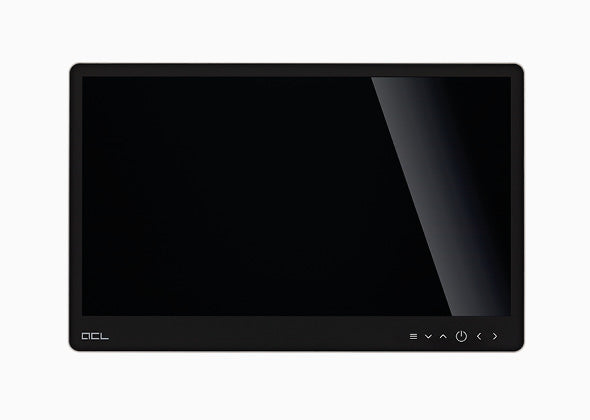

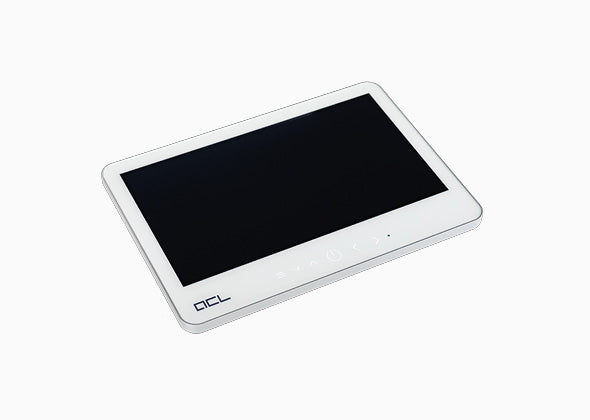

ACL OR-MD® Series

The OR-MD® series medical displays are specifically designed for use in operating theatres and intensive care units, making them the preferred choice for medical image and video display. They feature high brightness, true-colour accuracy, and an excellent all-round viewing angle—ensuring clear visibility from virtually any position.

These displays are optimised for viewing radiological, endoscopic, and microscopic images, and can also be used as a reliable secondary screen when needed. For models up to 32 inches, an optional optical bonding process is available. This advanced technique bonds the display directly to the protective glass, significantly reducing light refractions and unwanted reflections.

As a result, image clarity and brilliance are further enhanced, enabling users to identify even the finest gradations in shades with greater speed and precision.

Areas of application:
+ Operating room
+ Endoscopy
+ Microscopy
+ Visualization within the patient environment
environment (according to EN DIN/UL 60601)

Specifications

Display Options

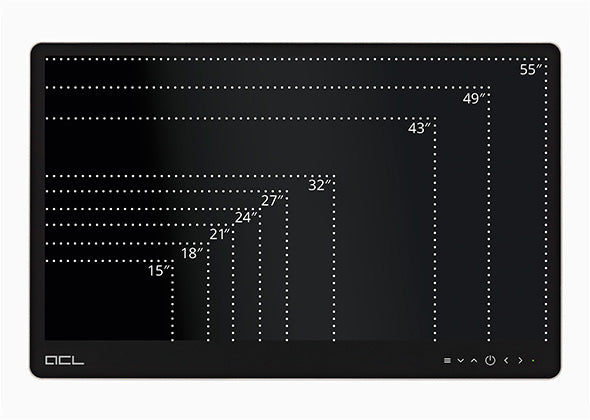

• Full HD Monitor Sizes: 15", 18", 21", 24", 27", 32"
• UHD (4K) Monitor Sizes: 24", 27", 32", 43", 49", 55"
• Touch Functionality: PCAP multi-touch
• Calibration: DICOM preset for accurate medical imaging

Inputs and Outputs

• Customisable configuration including DVI, VGA, DisplayPort (DP), HDMI, 3G-SDI, and 12G-SDI

Available Options

• Optical bonding for enhanced image clarity
• Integrated cable cover for clean installation
• Custom layouts tailored to individual customer requirements




  OR-MD® Series – Model & Display Resolution

  Model	Display Resolution
  OR-MD® 15	Full HD
  OR-MD® 21	Full HD
  OR-MD® 24	Full HD
  OR-MD® 27 (4K)	Ultra HD (4K)
  OR-MD® 32 (4K)	Ultra HD (4K)
  OR-MD® 32 (4K High Bright)	Ultra HD (4K) – High Brightness
  OR-MD® 43 (4K)	Ultra HD (4K)
  OR-MD® 49 (4K)	Ultra HD (4K)
  OR-MD® 55 (4K)	Ultra HD (4K)
