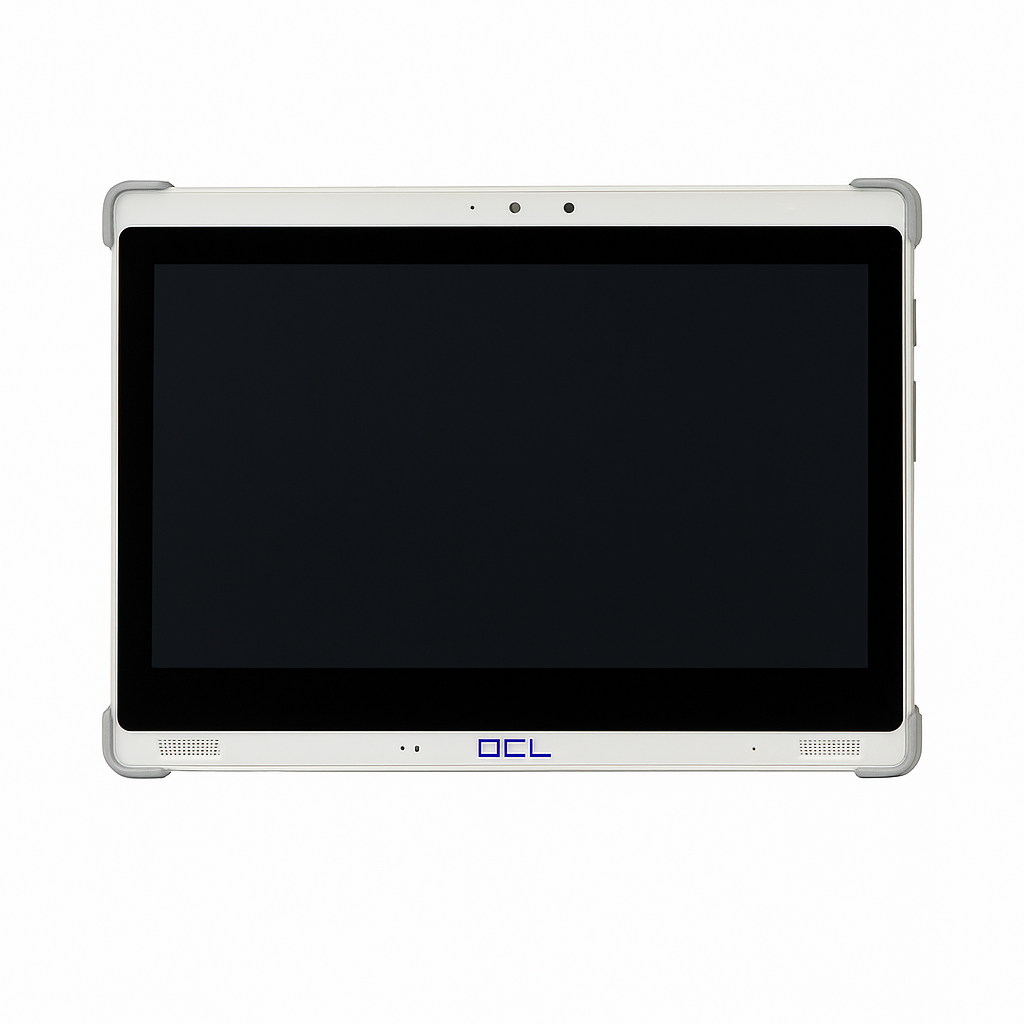

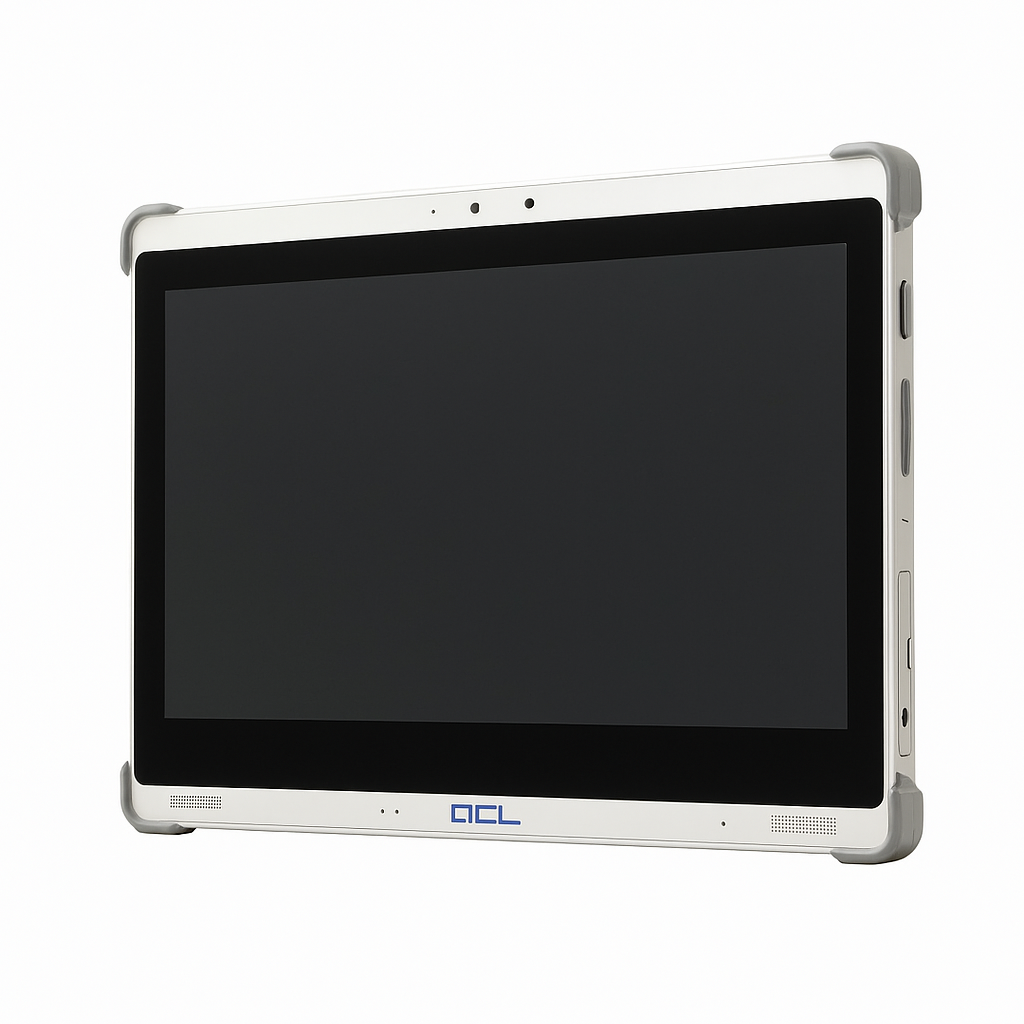

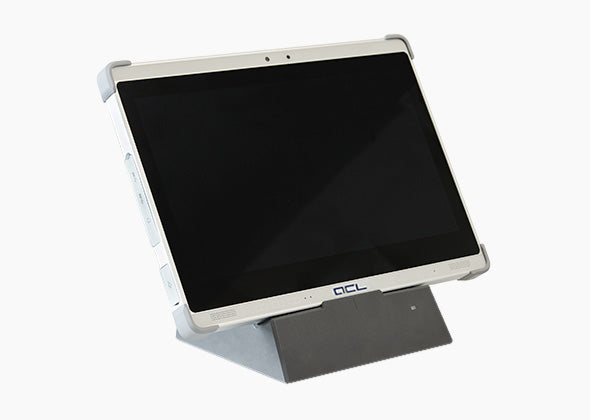

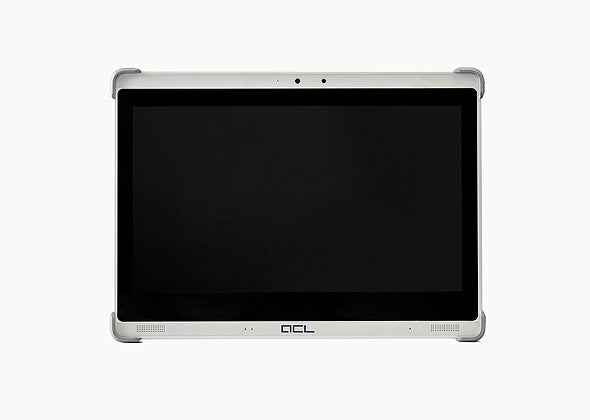

ACL OR-Pad® Medical Tablet Pro Core i5-1145 G7E (11. Gen.)

The OR-Pad® is a robust, high-performance medical tablet designed to support clinical workflows wherever you are. Weighing just 1.8 kg, it delivers seamless access to digital content through advanced connectivity options. Housed in a compact, durable aluminium casing, it combines powerful functionality with portability.

Certified to IEC 60601-1 / 60601-1-2 standards and rated IP65, the OR-Pad® is built to withstand drops, shocks, and liquid ingress—making it ideal for demanding medical environments. True to ACL’s commitment to clinical safety, the device is fully compatible with all commonly used hospital-grade disinfectants and cleaning agents.

Specifications – OR-Pad® Medical Tablet

Form Factor
• Weight: 1.8 kg
• Housing: Rugged aluminium construction with IP65 protection rating

Display
• 13.3″ IPS touchscreen with Full HD resolution
• 10-point PCAP multi-touch
• Corning® Gorilla® Glass with anti-fingerprint (AF) and anti-glare (AG) coatings

Performance
• Processor: Intel® Core™ i5, 11th generation
• Memory: 8 GB DDR4 RAM
• Storage: 256 GB SSD

Battery
• Capacity: 10.8 V / 4550 mAh / 49.14 Wh

Input & Controls
• Front keypad: Power button, volume up/down
• 3 programmable buttons (optional)

Interfaces
• 1 × HDMI
• 2 × USB 3.0 (Type-A)
• 1 × USB 3.1 (Type-C)
• DC charging socket
• 3.5 mm audio jack (input/output)
• Dual stereo speakers (2 W each)

Camera & Sensors
• Front camera: 5 MP (fixed focus)
• Rear camera: 8 MP (autofocus) with LED flash
• Sensors: G-sensor, gyroscope, ambient light sensor

Connectivity
• WiFi 6 and Bluetooth 5 for high-speed wireless communication

Operating System
• Windows 10 IoT Enterprise (optional)
